PQ668 single spindle multi-thread planishing mill PQ668

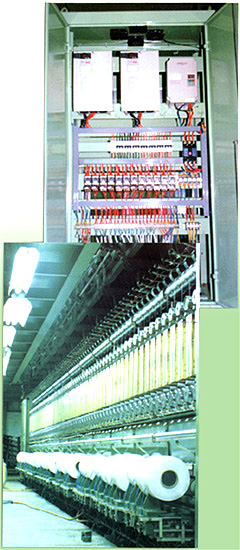

entire frequency conversion control system
takes to bring with the system only not to decide the multifilament to pull evenly machine

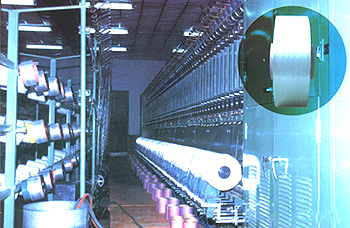

PQ668 single spindle multi-thread planishing mill
The trough tube box body

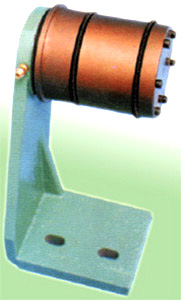

pinch roll


slide rails

Parameter:
1. The range adapting to spin: 50 - 300 D
2. The number of spinning: double surface of 12 section that comes to 144
3. The space between the spindles:170mm
4. Muzzle:144,network point:20-60/m
5. The spinning speed:300-1000m/min adjustable continuously
6. The shape of canister tube:paper tube of : φ108×φ94×φ125mm
7. The maximum winding installation: φ360×φ95
8. The net weight of winding thread:about 7kg
9. The precise of temperature control:hot plate is less than ±1℃, hot ban is less than ±2℃.
10. The system power:about＆#58 46kw
11. The total weight:about :30ton
