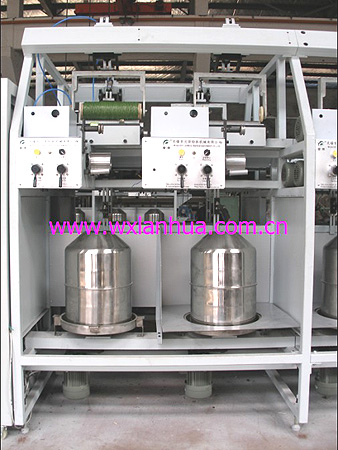

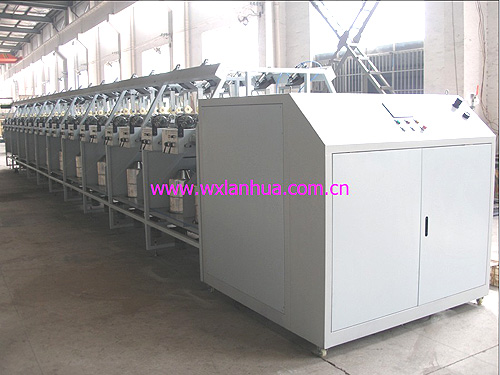

summary:
This machine is the national originatation ,which fill the blank of this product in the domestic textile industry.It’s suitable for twisting the polypropylene lawn fibre.titering range from 1000D to 10000D,form into circular cylindrical roll for later work.

Structure feaure:
(1)The twist spindle of machine controlled by vertical electric motor transmission and frequency. Reach the goal of once turn with double twist by synchronous belt transporting,and change the direction of electric motor can change the direction of twist(S or Zform).
(2) Large wharve(φ330m),diameter of nature mitan is 300mm,weight 7kg,high quantity,low consumption.
(3) The finish of wind-shaped action， due to the double sets traverse cam chest drive double platoon filar guide, and traverse cam chest is drived by motor through timing belt and wheel, then the driving cam lead slider reciprocating motion, it’s controlled by single frequency, also frequency is set as preventing overlap, thereby form as cylindrical roll.
(4)Super feeder roller takes use of single frequency to adjuste.
(5)The whole machine is transported by electric machine with synchronous belt,low noises,small vibra，easily finetune.

Technology parameter
Machine type: single lay double faces
Spindle number: 4 Spindles/group
Diameter of Spindles: φ330mm
Speed of wharve: ≤5000r/min
Speed of rolling: ≤300m/min
Titer range: 1000D---10000D
Laying range: 20—200 lay/m
Feed rolling: φ300×260mm
Final rolling: biggestφ340×260mm
Rolling weight: max 7Kg
The total power of electiric machine: 0.92Kw/ Spindle×n Spindle
Shape size: length 1300×width 1300×height 1800mm
Weight of machine: about 0.5t/group
