1. Application：

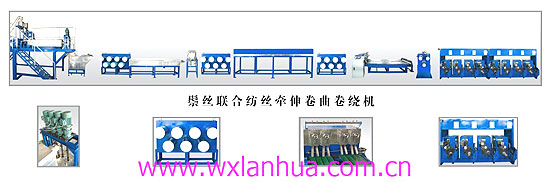

This equipment is used for producing PP/PET/PA6 bristle monofilament, especially for artificial lawn monofilament and crimped multifilament. The entire equipment have been configured air crimp section for getting crimped multifilament, the winder section adopt triple chucks and auto switch, auto winder is better for automation control.
2.Technology parameter
◆ Titer Range: 3000D-10000D　　monofilament: 50D-1200D
◆ Number of Spindle: 8-16 spindle
◆ Winder speed: ≤400m/min
◆ Size of bobbin: Ф75×Ф81×290（mm）
◆ Winder Model: LHW224 Automatic Switch
◆ Spinning Pack: 4 pics　　Spinneret: 8 pics
◆ Spinning Pump: 4sets　　one input two outputs
