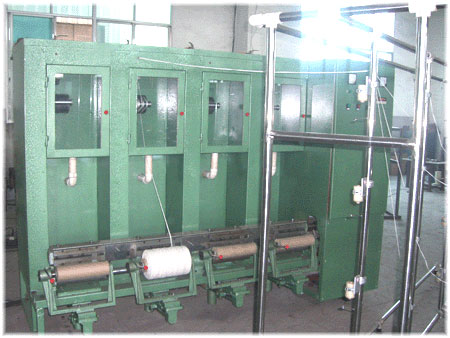

| BCF network machine | | |
|
|
|
Use:
BCF Network Machine is used for air making of polypropylene BCF filament,tittering range from 3000D to 10000D network filament,forming into circular cylindrical robbin decoration cloth and carpet etc.
Structure feature
1. The machine is setted with longth counting instrument,which can determine lonth and weight,detecte broken silk automatically
2. It use up-down rollers middle network,drive part of upper roller is cocking debugable triagonal pulley,finetune the speed of upper roller to reach the best tenside force of network
3. All drivers are transported by flexble belt,drivers controlled by frequency transformator are ganging.
4. Finishing forming into shape is done by two crossed moving cam boxes getting die block to move reciprocally
5. Robbin grip is setted up carriage surface,the carriage is pulled by heavy tackle to create a suitful force between robbin and frication stick.
6. Frication stick takes use of metal surface annular knurl complex plating.
Tecenology parameter:
1. ingots number:4 ingots
2. speed of rolling: ≤600r/min
3. power of electiric machine:3Kw
4. pot of net:20-40/m
5. size of package: φ300×260mm
6. size of bobbin: φ80×φ73×290
|
 |
